Millers Falls Hand Drills

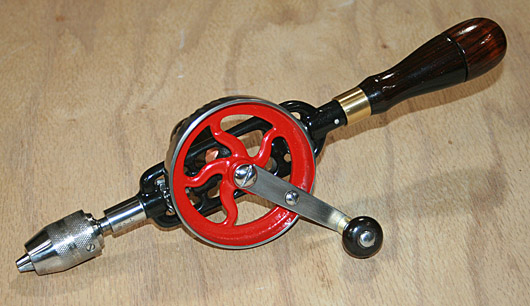

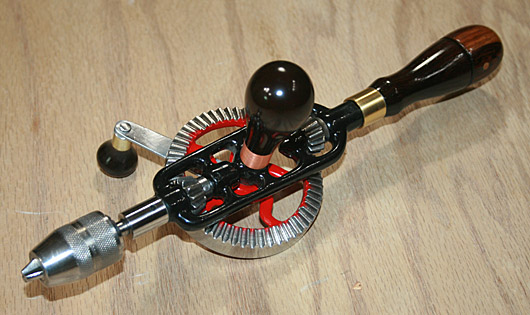

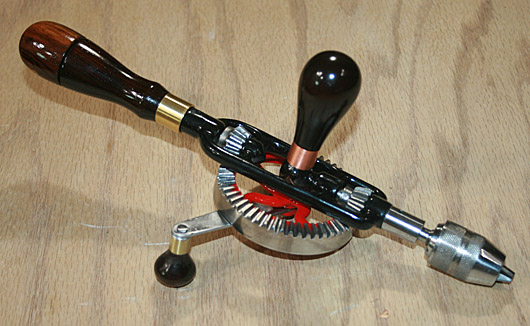

  Millers Falls Hand Drill No. 5 - 1909 edition.  Two Cocobolo handles. Very rare example!

The design of drill shown here was introduced in 1899. The general layout of the frame, main gear, two pinions and handles was carried over until the end of the drill's production around 1960s.



Until 1910 these drills were not marked with a model number. In 1910 Millers Falls decided to include model number, company logo and a name on the metal plate of the crank handle.

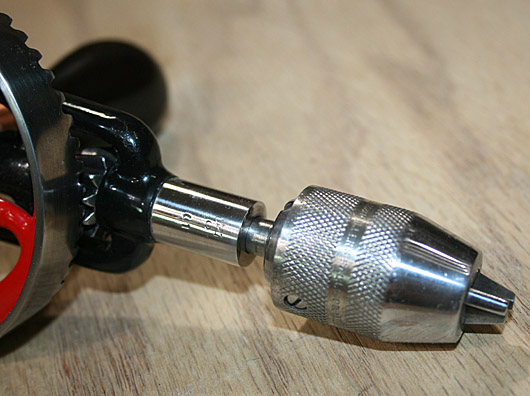

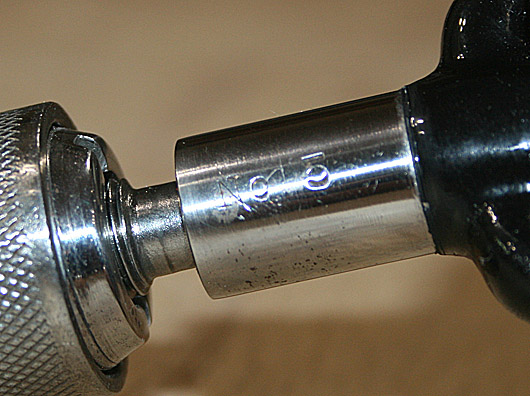

However, before this decision was made there was another attempt to mark their drills by stamping model number on the spindle housing. Drills No2 and No5 were marked in this manner.



This drill represents this initiative.




From the rare appearance of this model on today's market, I assume that production run was short and appeared shortly before 1910. In 1910 the company made ultimate decision to mark their drills on the matal plate of the crank handle.



Price: $265.00
Item: 509-No5-1909-01



SOLD

Immediate Shipping!

International buyers will receive separate invoice with S&H cost after purchase is complete.

From Millers Falls catalogs describe this drill as follows:

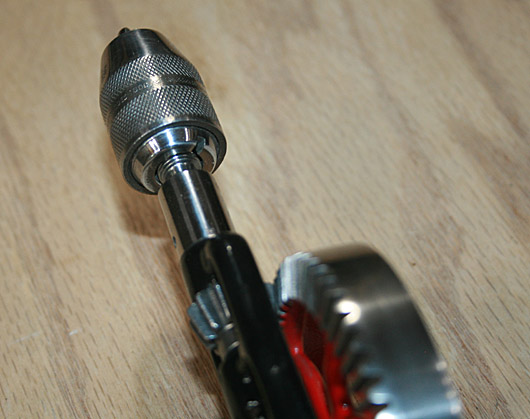

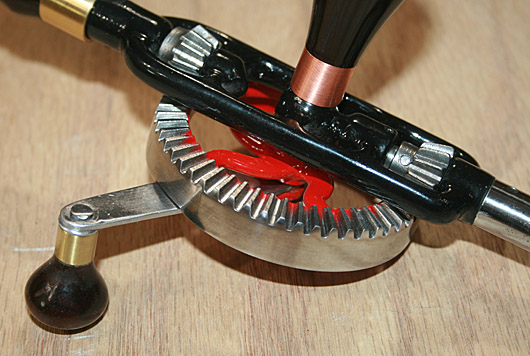

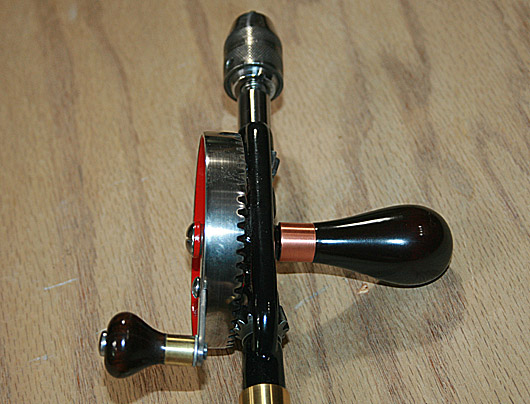

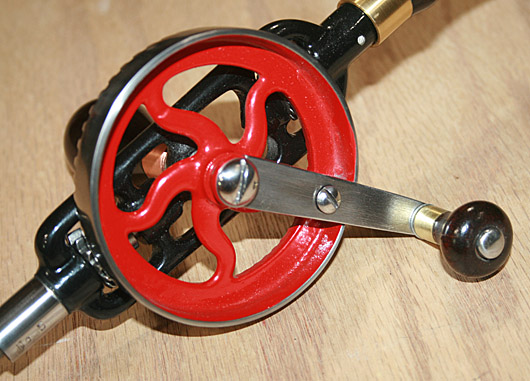

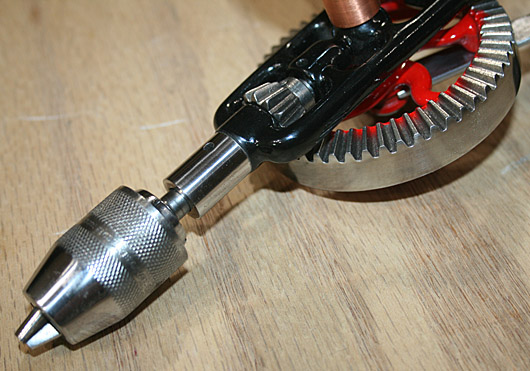

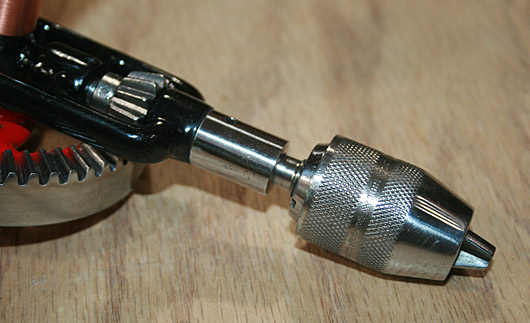

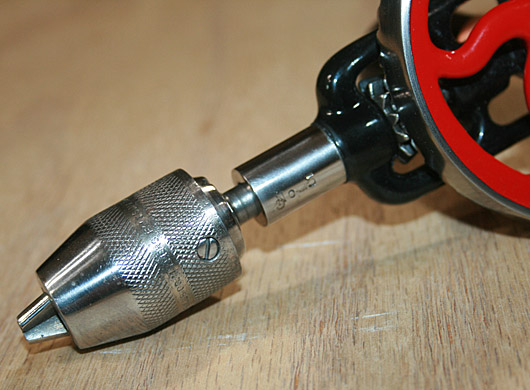

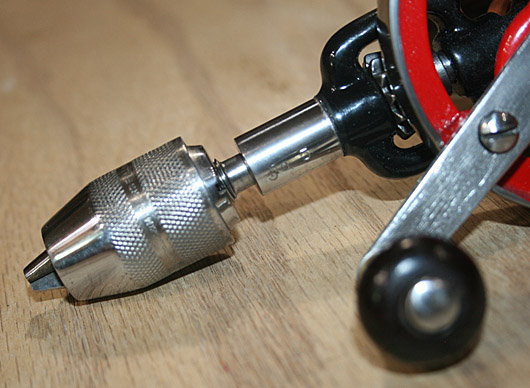

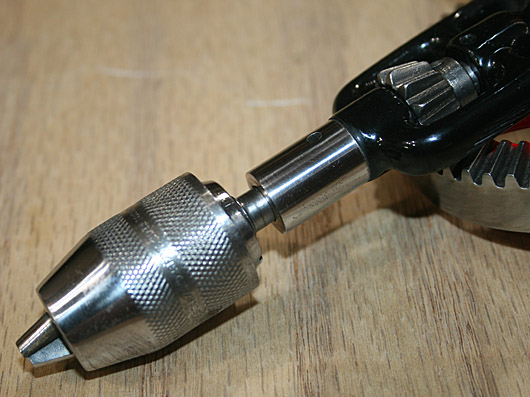

Frame made of malleable iron.  Drive gear with extra wide rim.  Two pinions, with drive pinions supported by ball thrust bearing at the end of the spindle.  Three-jaw, spring-less chuck adjustable 0 to 3/16 inch.  Black enameled frame, drive gear painted red; bright parts nickel plated.

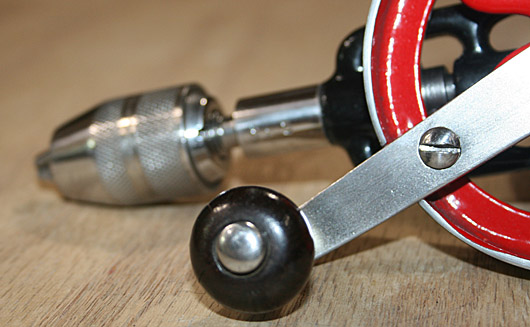

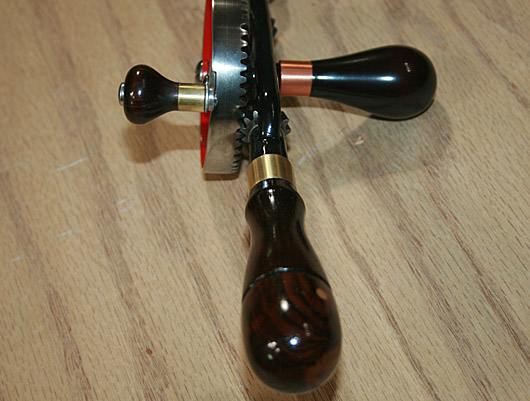

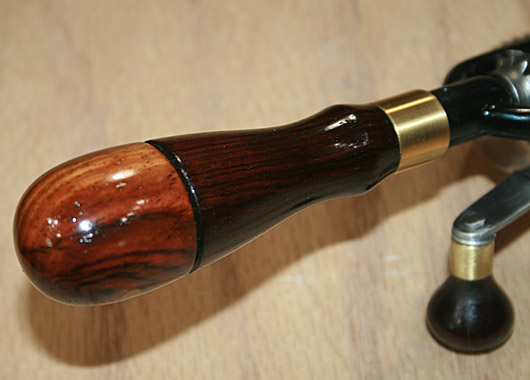

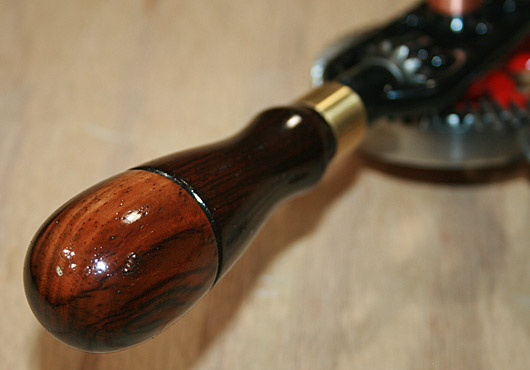

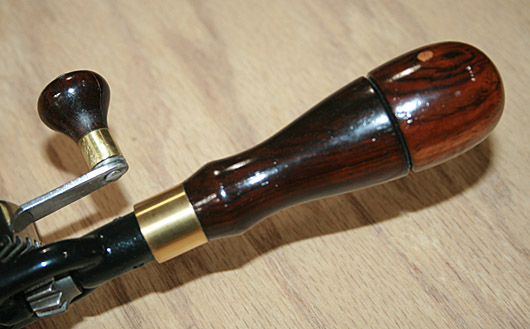

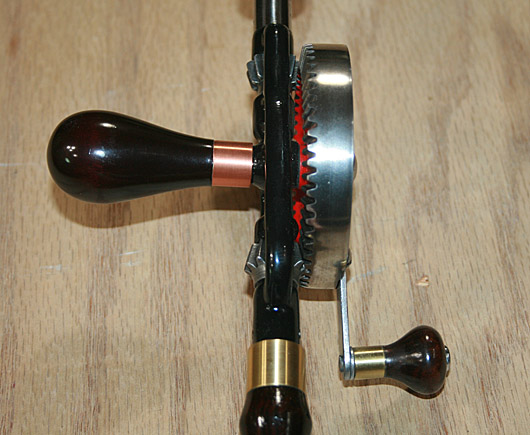

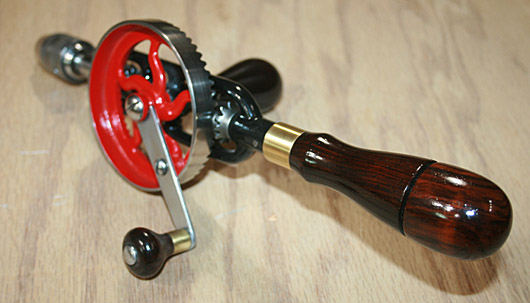

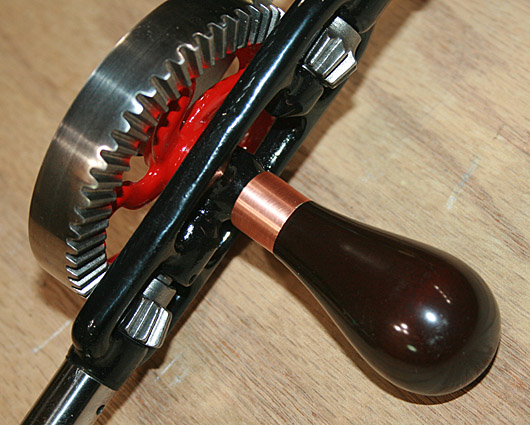

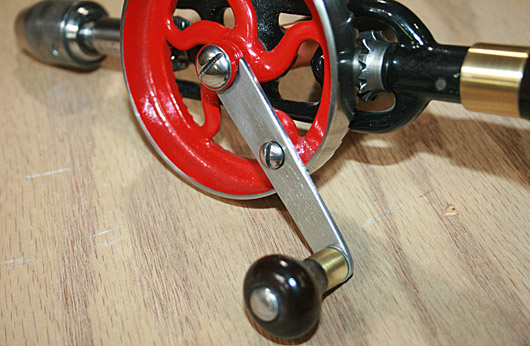

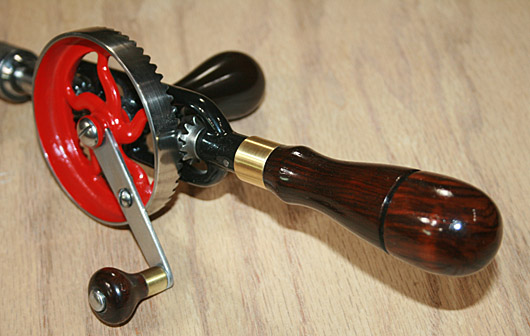

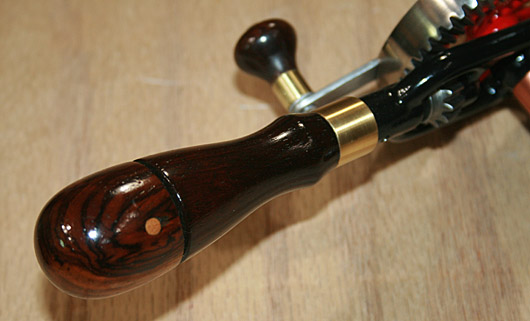

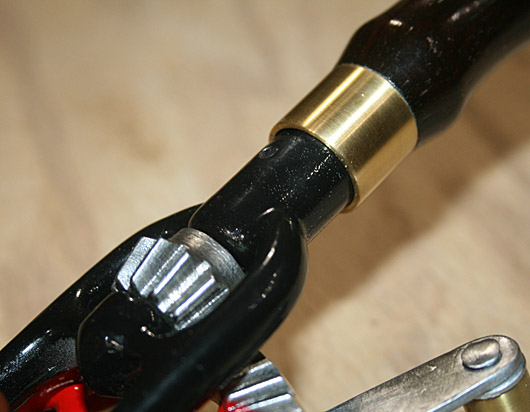

Main handle with a cap and hollow space for bits storage made of Cocobolo.  Crank Handle made in Cocobolo.  Tropical hardwood, stained with red mahogany for side handle.  It is in the shape of teardrop. It is detachable.



Drill length is 12-1/2 inchs.
