This is very rare example of a drill dated to 1907.

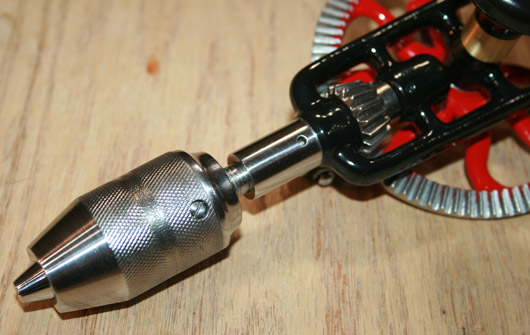

This is a No. 2 drill equipped with a
chuck based on Parsons' patent for the first time.

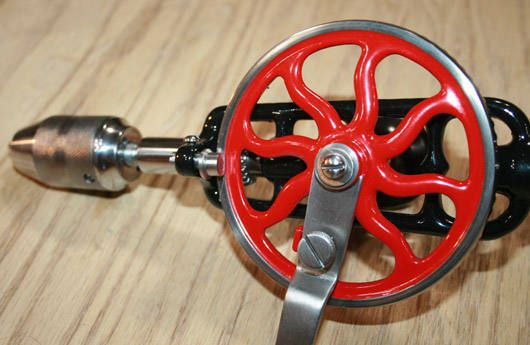

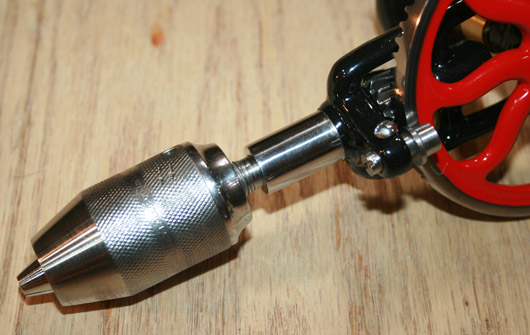

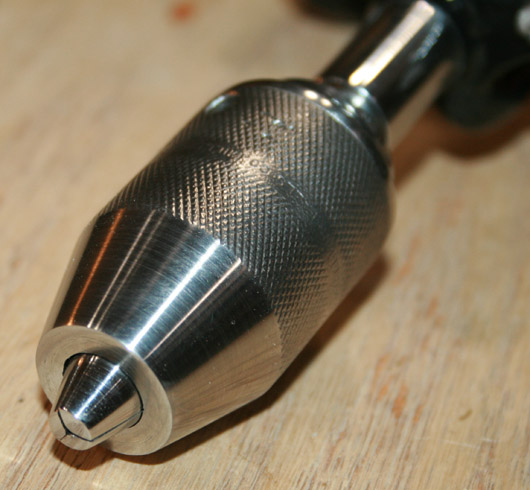

It is a three-jaws,
spring-type chuck adjustable from 0 to 3/8 inch.

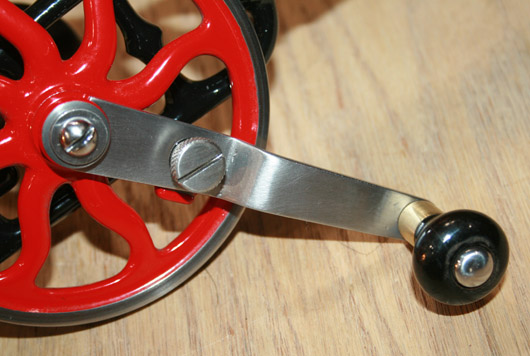

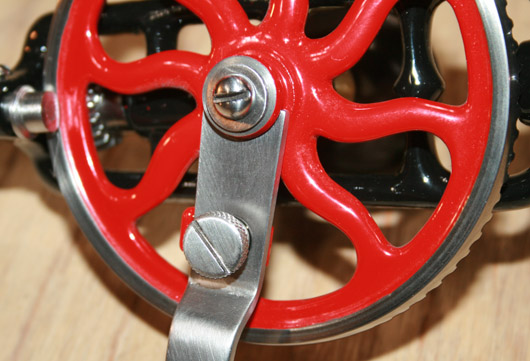

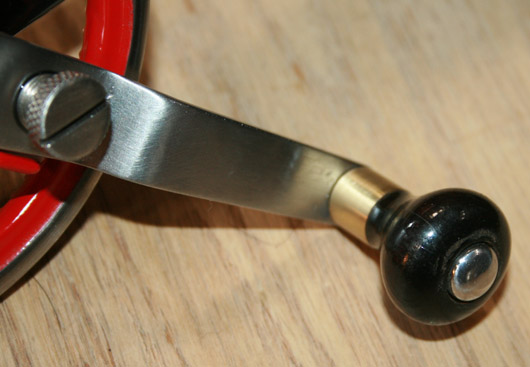

The drill has no markings on the crank plate and the

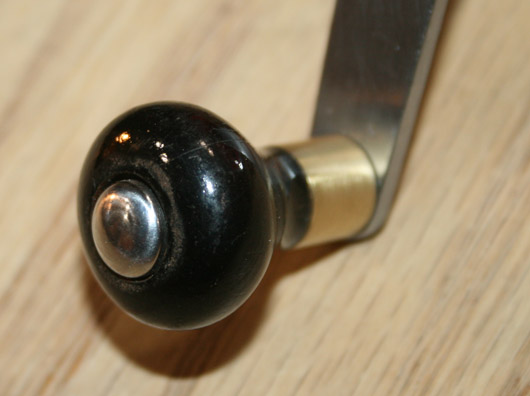

crank handle is still a small "chef's cap" shape, used
on early models. Only after three years - 1910 - the
crank plate received a "Star" marking with text. The
handle was also replaced with an elongated shape.

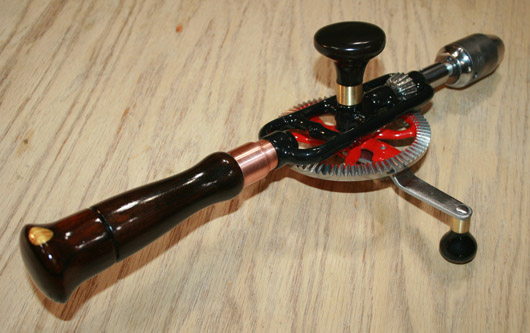

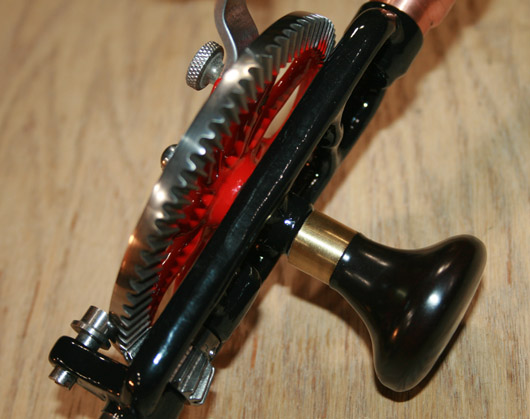

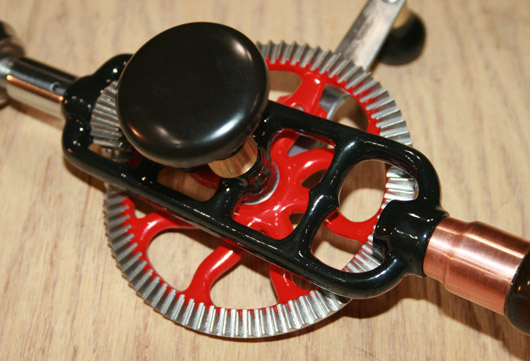

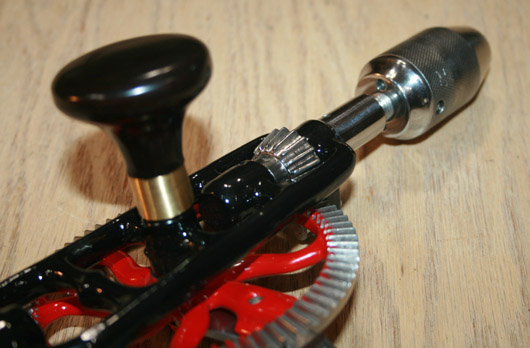

The side handle is a detachable, mushroom-shaped, used
for the first time on No. 2 drills. It replaced a
"egg-shaped" side handle used on previous models.
Falls describes this drill as:
Rare tropical wood; malleable iron, black enameled

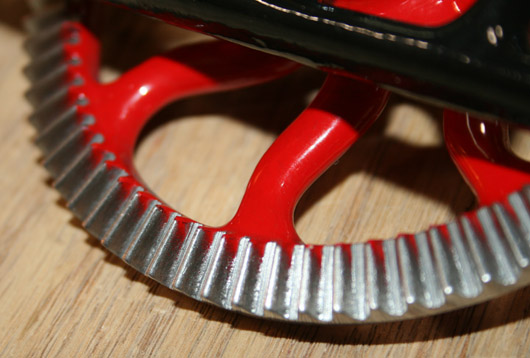

frame; large gear painted red; other metal parts
Hollow End Handle, with screw cap, shaped so tool may be
used as a breast drill, and spare bits. Removable side

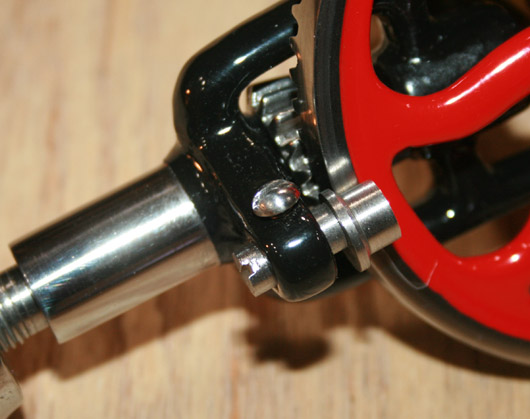

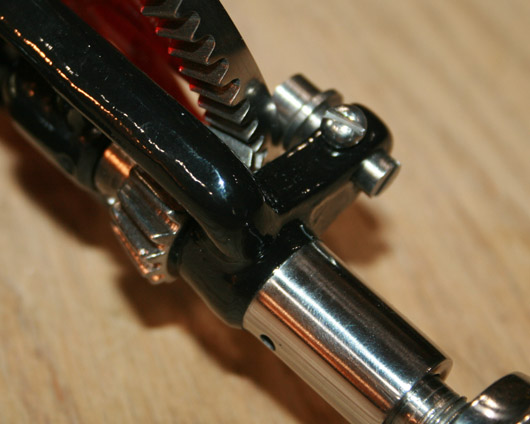

grip handle. Cut Gears with adjustable friction roll to

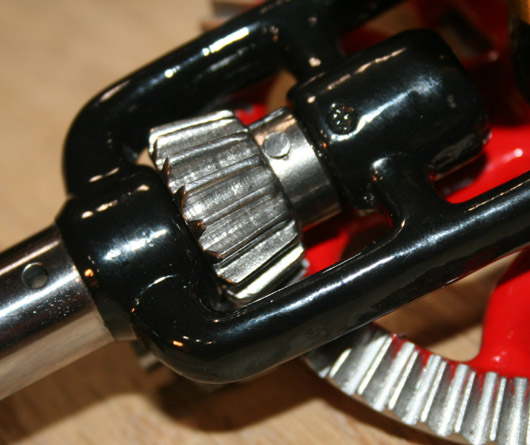

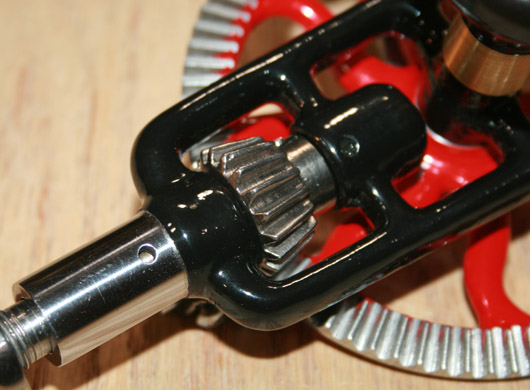

equalize bearing. Pinion of Steel, Ball Thrust Bearing.
Item #: 207-No2-1907-01

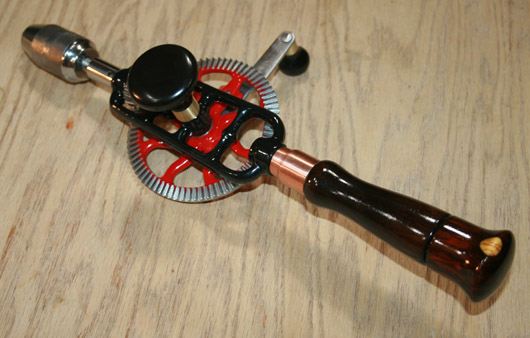

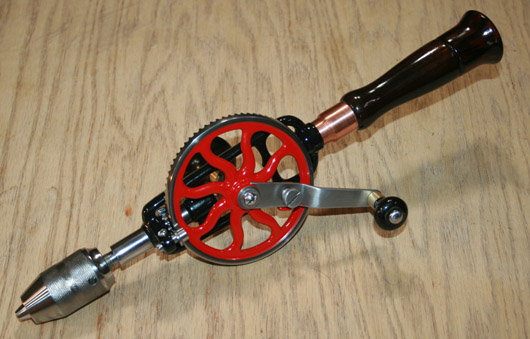

This is nice, early hand drill with Cocobolo main and crank handles,
finished with Tru-oil.
Smooth operating drill.

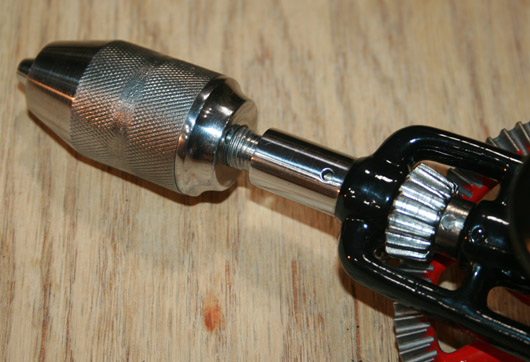

Identifying markings are place on the chuck and include chuck's
patent date and text. It reads: "Millers Falls Co., Millers Falls,
Mass. Pat. Oct. 23, 1900."

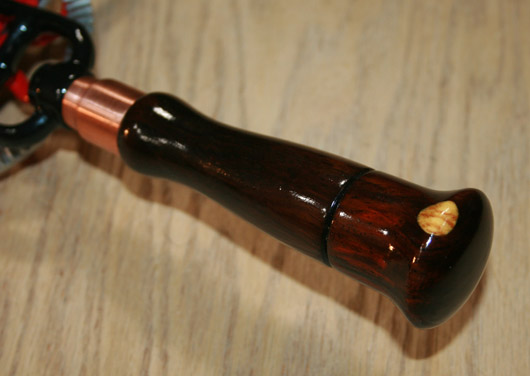

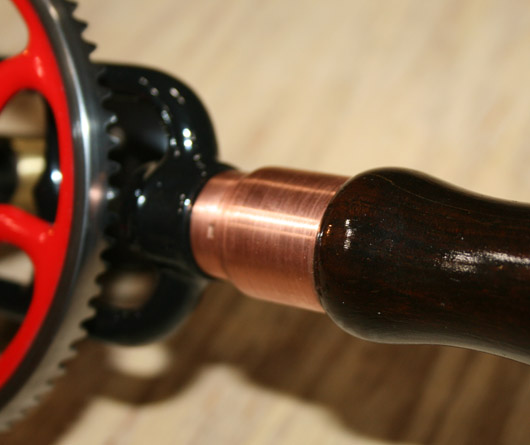

There is a small, but very nice repair on the main handle. I show in
in the picture below.
