catalog No 16:

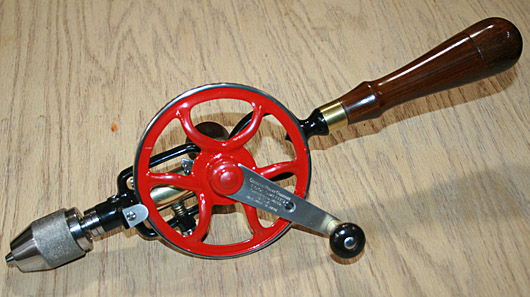

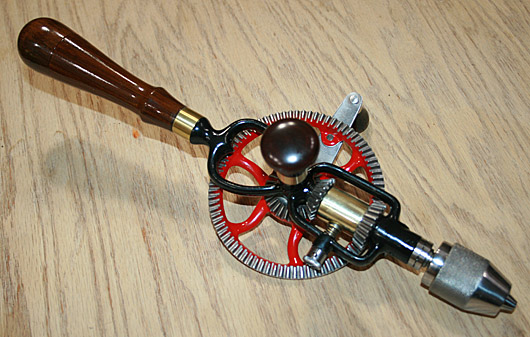

This hand drill is provided with two speeds which enable it to be
used on all classes of work up to its extreme capacity. The two

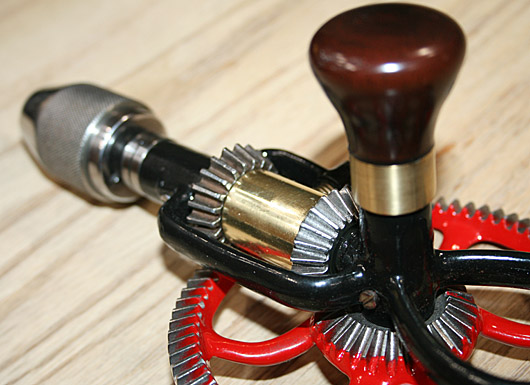

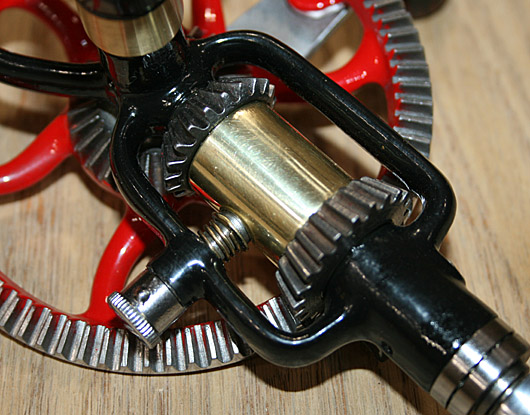

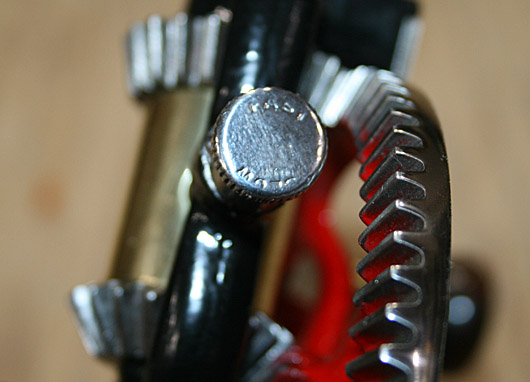

speeds are changed by turning the Shifter Knob marked Fast and
The recently improved clutch makes shifting mechanism

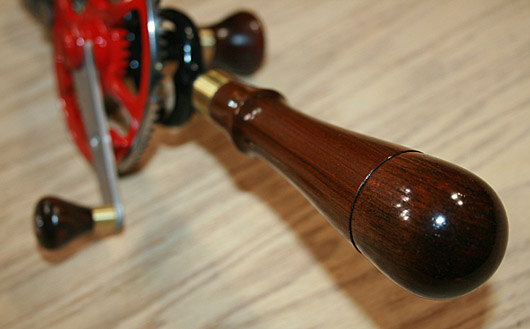

stronger and easier to operate. The polished rosewood handle has a
screw cap that can be removed when handle is used for holding

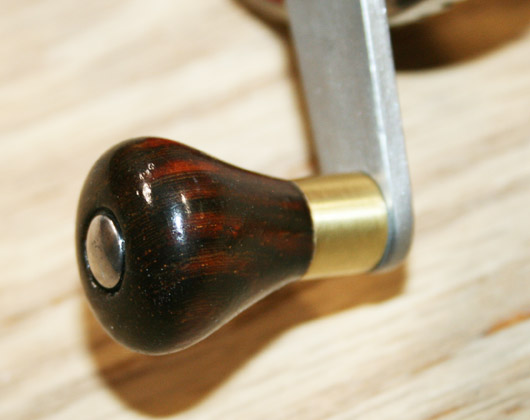

knob Side and Rosewood Crank Handles are provided. The frame is

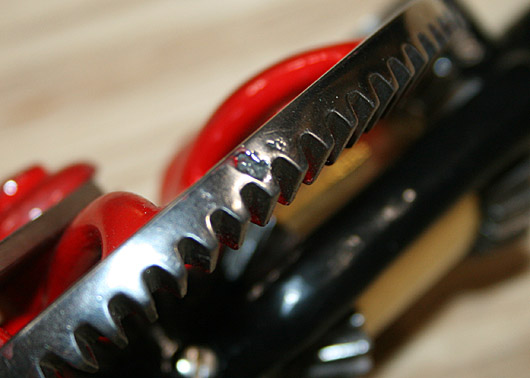

malleable iron, black enameled. All gear teeth are accurately cut by
automatic machinery. Pinions are steel.

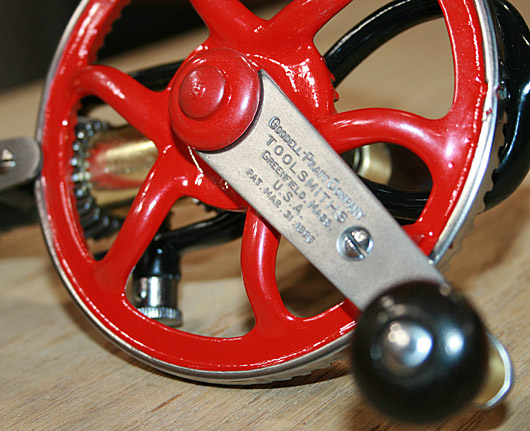

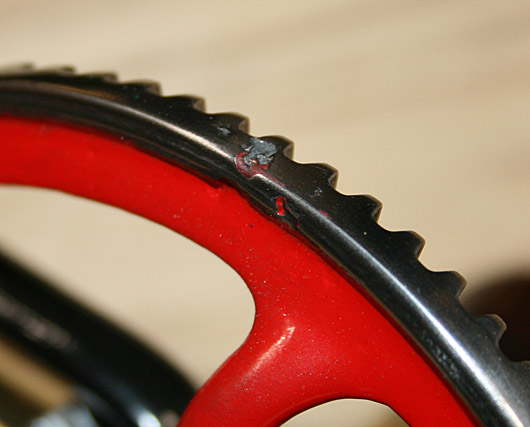

Large Gear is finished with
red enamel. The accurately turned steel spindle runs in Ball
Bearings. It has hardened end that runs in a hardened steel Cone

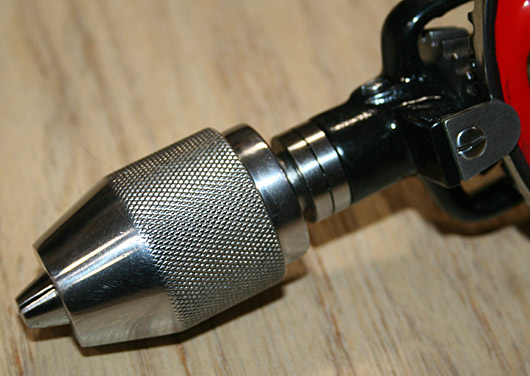

Bearing. The all steel Chuck has three hardened jaws for holding
Round Shank Drills 0 to 3/8 inch. Bright nickel finish.
Capacity 3/8 inch
Length 14 ½ inches
Weight 2 ½ lbs.
