Goodell-Pratt
catalog No 16:

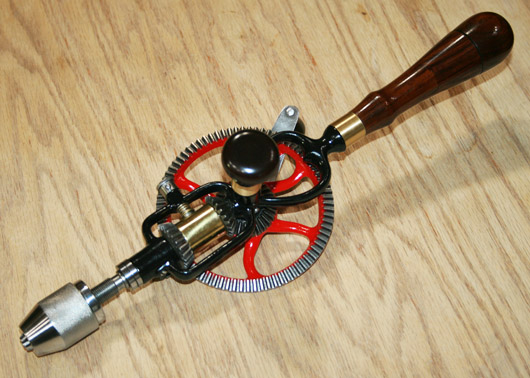

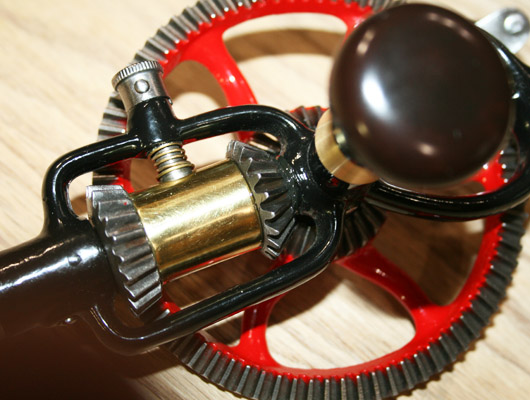

This hand drill is provided with two speeds which enable it to be
used on all classes of work up to its extreme capacity. The two

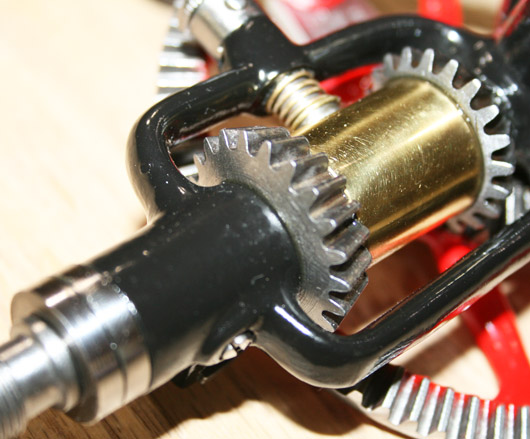

speeds are changed by turning the Shifter Knob marked Fast and
Slow. The recently improved clutch makes shifting mechanism

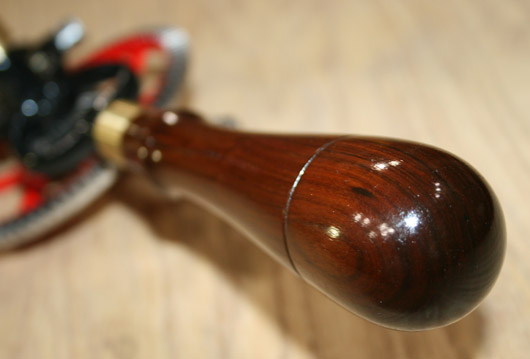

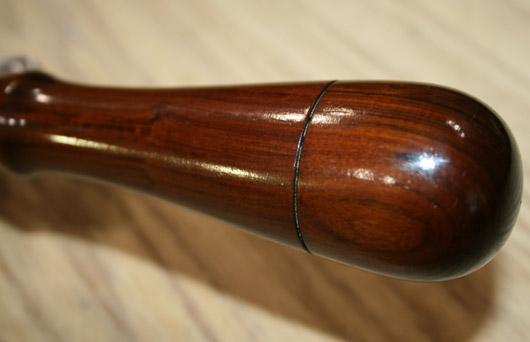

stronger and easier to operate. The polished rosewood handle has a
screw cap that can be removed when handle is used for holding
drills.

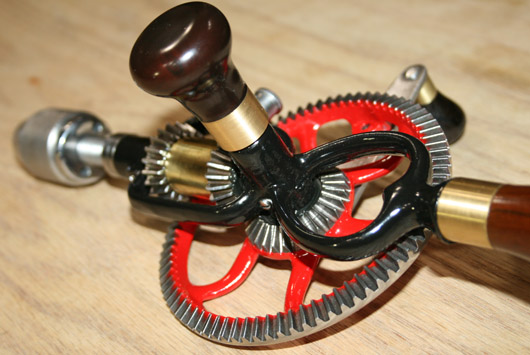

Large, comfortable

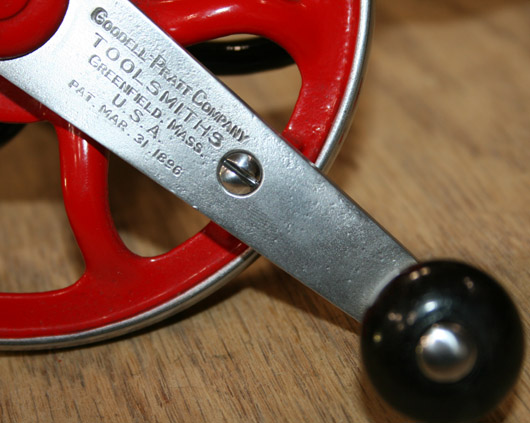

knob Side and Rosewood Crank Handles are provided. The frame is

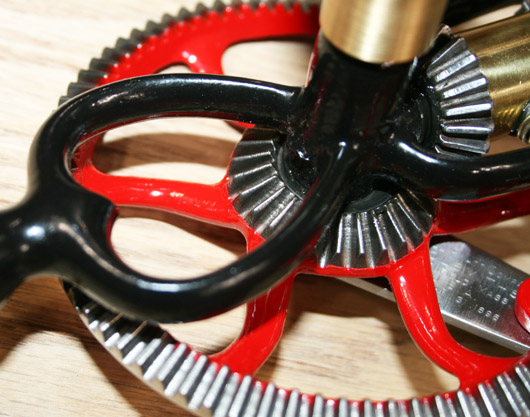

malleable iron, black enameled. All gear teeth are accurately cut by
automatic machinery. Pinions are steel. Large Gear is finished with

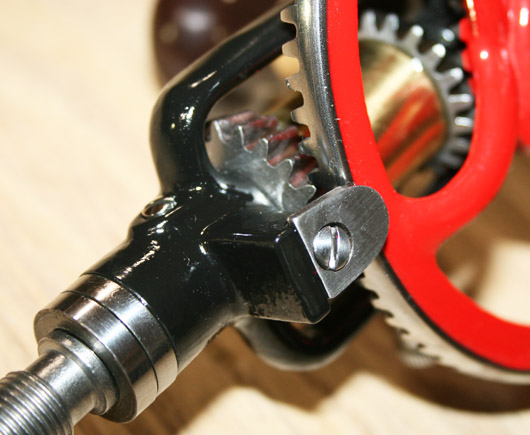

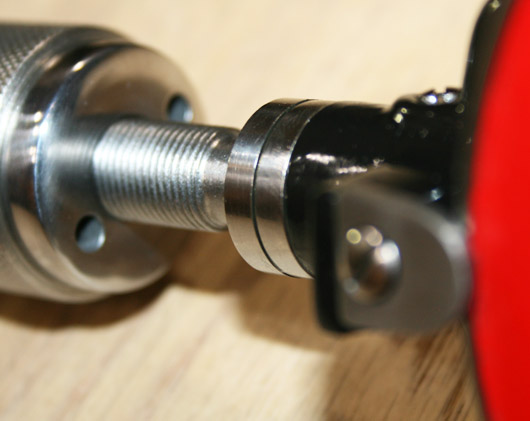

red enamel. The accurately turned steel spindle runs in Ball
Bearings. It has hardened end that runs in a hardened steel Cone

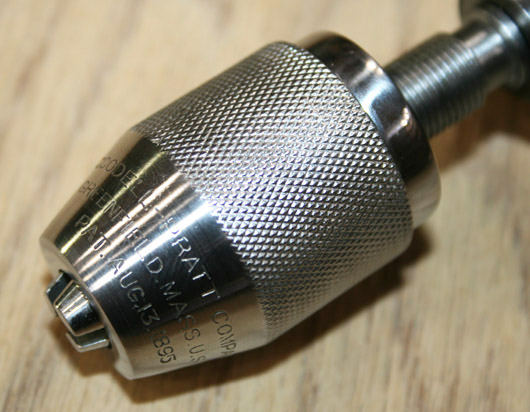

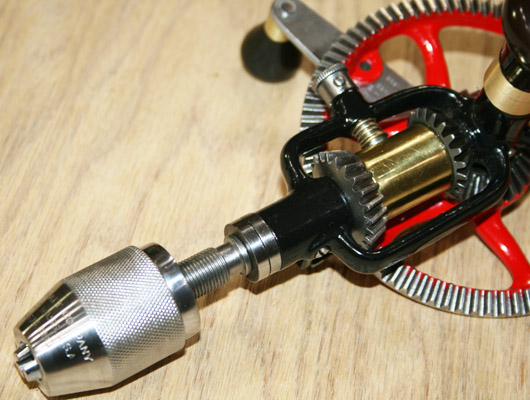

Bearing. The all steel Chuck has three hardened jaws for holding
Round Shank Drills 0 to 3/8 inch. Bright nickel finish.
Chuck
Capacity 3/8 inch
Length 14 ½ inches
Weight 2 ½ lbs.
