Millers Falls Company - Millers Falls and Greenfield, MA



  Hand Drill No. 1, Rosewood Handles - c. 1903 edition 1 of 3

The Millers Falls Company - Catalog "B" Pocket Edition, c. 1903:

"These Drills are provided with Chucks having three jaws resting in solid socket.  There are no springs to get out of place or out of order.  The chucks are nickeled and the handles Cocobola.  They hold drills from 0 to 3/16.  A side handle, as shown in cut, is furnished with this drill.

Price per dozen, including 8 fluted points in hollow handle ...... $15.00"

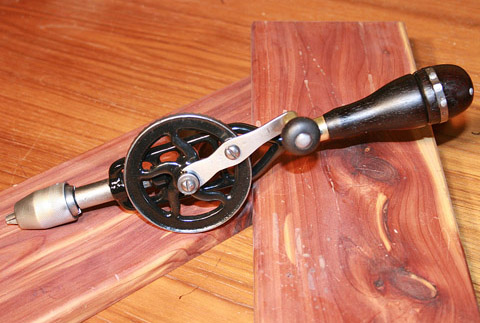

General view from the face side.

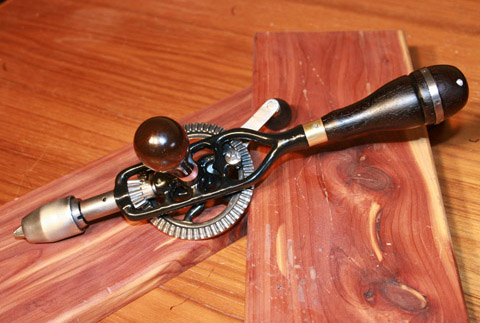

General view from the gear side.

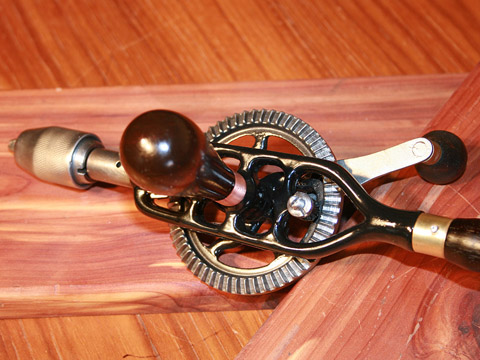

Gear, pinion, and equalizing friction screw with a lock nut.

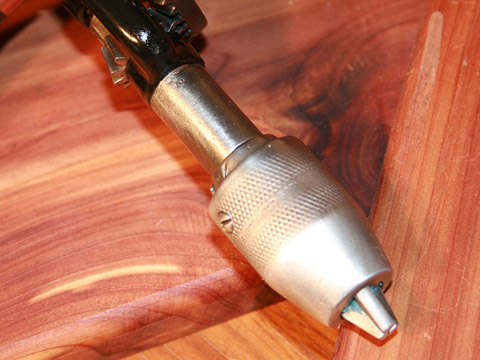

Patented (568,539-McCoy) spring-less chuck.

Parts of spring-less chuck. (More on MF Chucks)



[z_Reading/00-468Ads/468X60-PW-DesignColl.htm]
1 of 3
