Millers Falls Company - Millers Falls and
Greenfield, MA
|
|
|
|
|
|
|
|
|
Hand Drill No. 1,
Cocobolo Handles - c. 1903
edition |
1 of 3
 |
|
|
|
The Millers Falls Company - Catalog "B" Pocket Edition, c.
1903:
"These Drills are
provided with Chucks having three jaws resting in solid socket.
There are no springs to get out of place or out of order.
The chucks are nickeled and the handles Cocobola. They
hold drills from 0 to 3/16. A side handle, as shown in
cut, is furnished with this drill.
Price per dozen,
including 8 fluted points in hollow handle ...... $15.00"

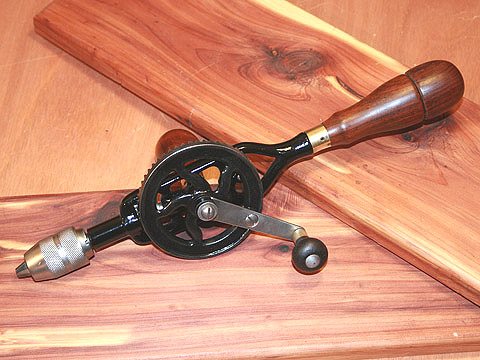

General view from the face side.

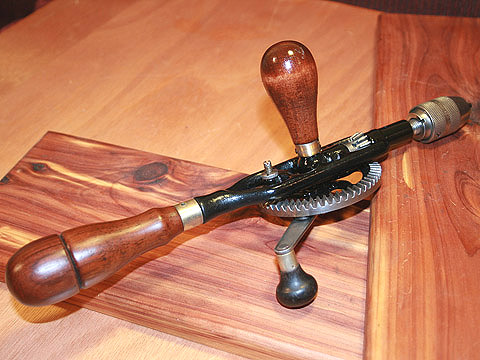

General view from the gear side.

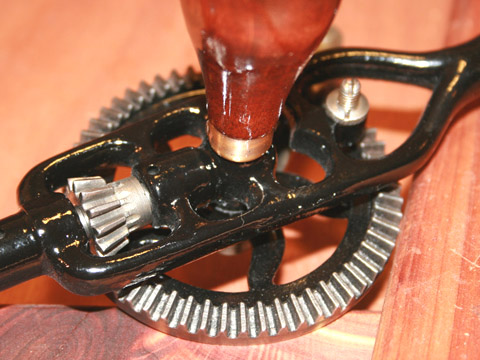

Main gear, pinion, and equalizing friction screw with a lock
nut.

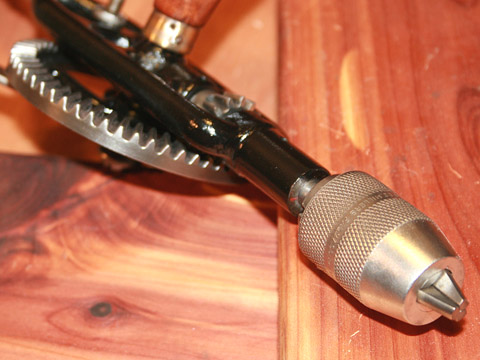

Patented (568,539-McCoy)
spring-less chuck.

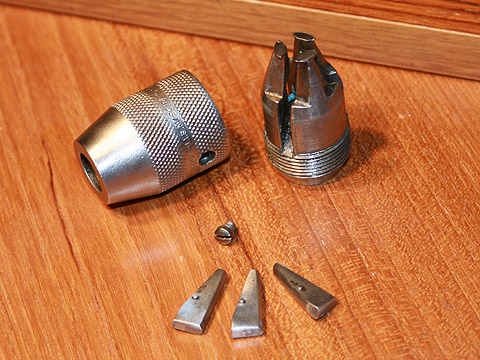

Parts of spring-less chuck.
(More on MF Chucks)
|
|
| |
